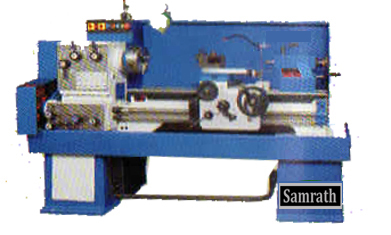

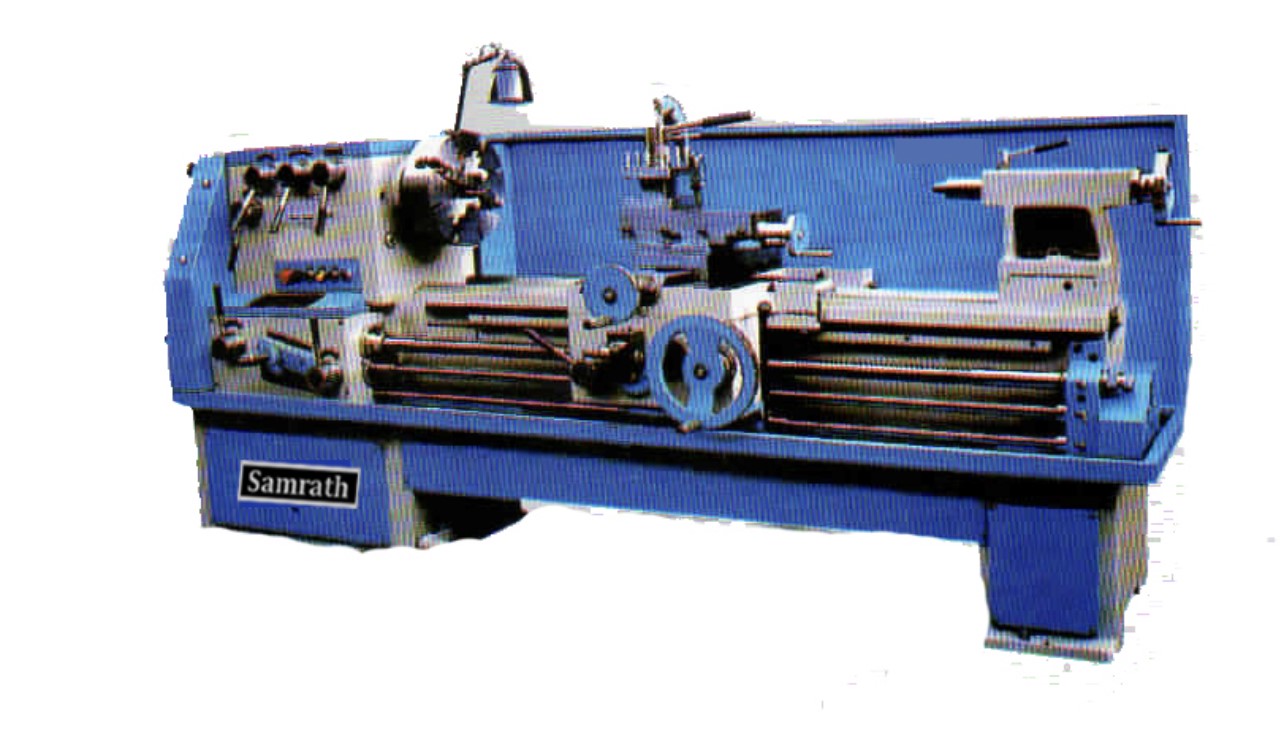

All Geared Lathe Machine

Model	LDGG-1	LDGG-2	LDGG-3	MDGG-1	MDGG-2	MDGG-3
Bed
Bed Length	1375 mm	1600 mm	1825 mm	1375 mm	1600 mm	1825 mm
Bed Width	240 mm	240 mm	240 mm	280 mm	280 mm	280 mm
Gap Length	110 mm	110 mm	110 mm	110 mm	120 mm	120 mm
Capacity
Height of Centre	165 mm	165 mm	165 mm	215 mm	215 mm	215 mm
Swing Over Bed	320 mm	320 mm	320 mm	425 mm	425 mm	425 mm
Swing Over gap	500 mm	500 mm	500 mm	620 mm	620 mm	620 mm
Swing Over Cross Slide	180 mm	180 mm	180 mm	250 mm	250 mm	250 mm
Admit Between Centre	675 mm	915 mm	1145 mm	550 mm	990 mm	970 mm
Movements of Cross Slide	200 mm	200 mm	200 mm	225 mm	225 mm	225 mm
Spindle
Spindle Nose	A2-4	A2-4	A2-4	A2-4	A2-4	A2-4
Taper Bore in Spindle Sleeve	MT-4	MT-3	MT-3	MT-4	MT-4	MT-4
Spindle Bore	40mm	40mm	40mm	52 mm	52 mm	52 mm
Tall Stock
Quill Dia	38 mm	38 mm	38 mm	50 mm	50 mm	50 mm
Taper in Quill	MT-3	MT-3	MT-3	MT-4	MT-4	MT-4
Quill Travel	115 mm	115 mm	115 mm	150 mm	150 mm	150 mm
Speed
No.of Spindle Speed	8	8	8	8	8	8
R.P.M	40-1100	40-1100	40-1100	40-1150	40-1150	40-1150
Threads
Lead Screw Dia	1" x 4TPI	1" x 4TPI	1" x 4TPI	1.25" x 4TPI	1.25" x 4TPI	1.25" x 4TPI
Metric Thread	13 (1-8mm)	13 (1-6mm)	13 (1-6mm)	13 (1-6mm)	13 (1-6mm)	13 (1-6mm)
English Thread	19 ( 2-24 TPI)	19 ( 2-24 TPI)	19 ( 2-24 TPI)	19 ( 2-24 TPI)	19 ( 2-24 TPI)	19 ( 2-24 TPI)
Electrical
Power Required	2HP	2HP	2HP	3HP	3HP	3HP
