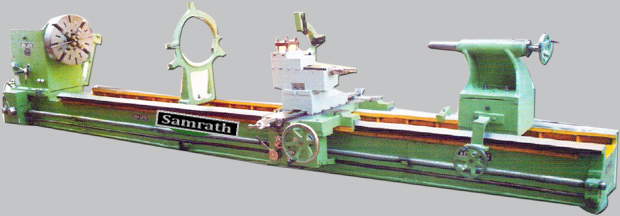

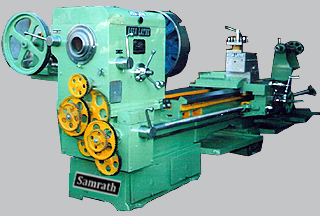

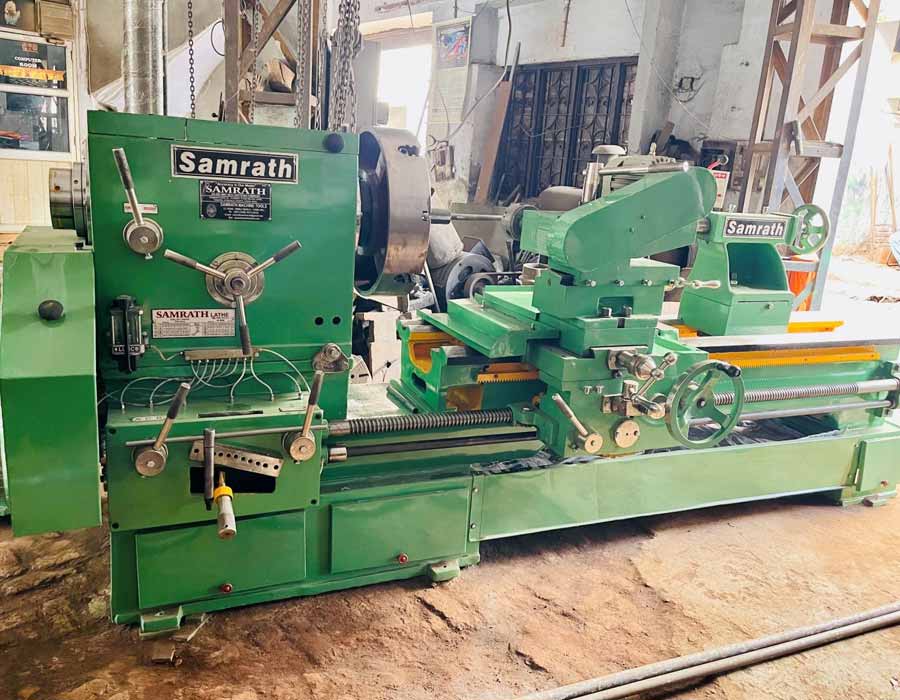

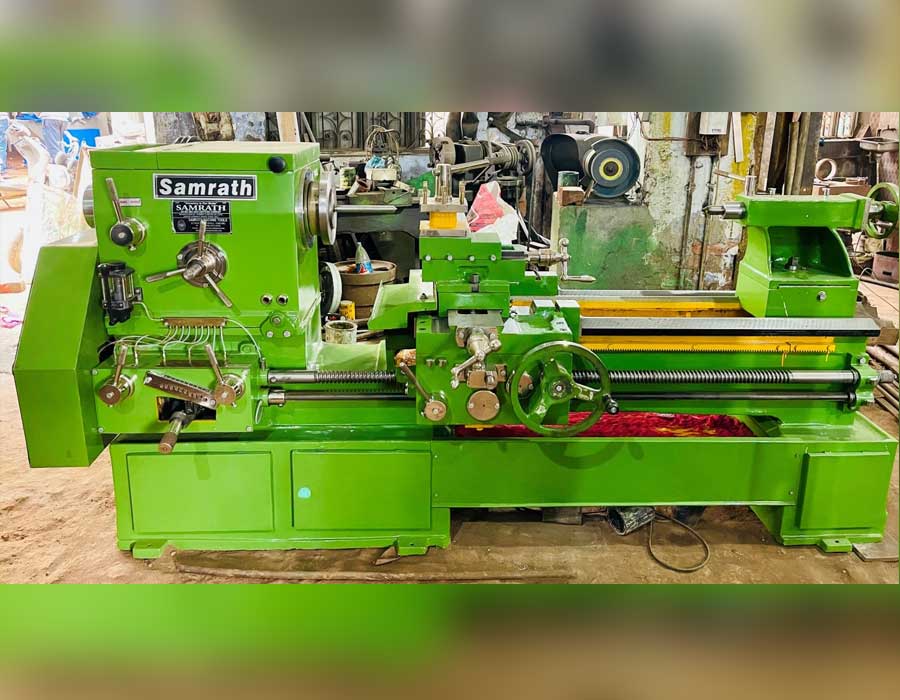

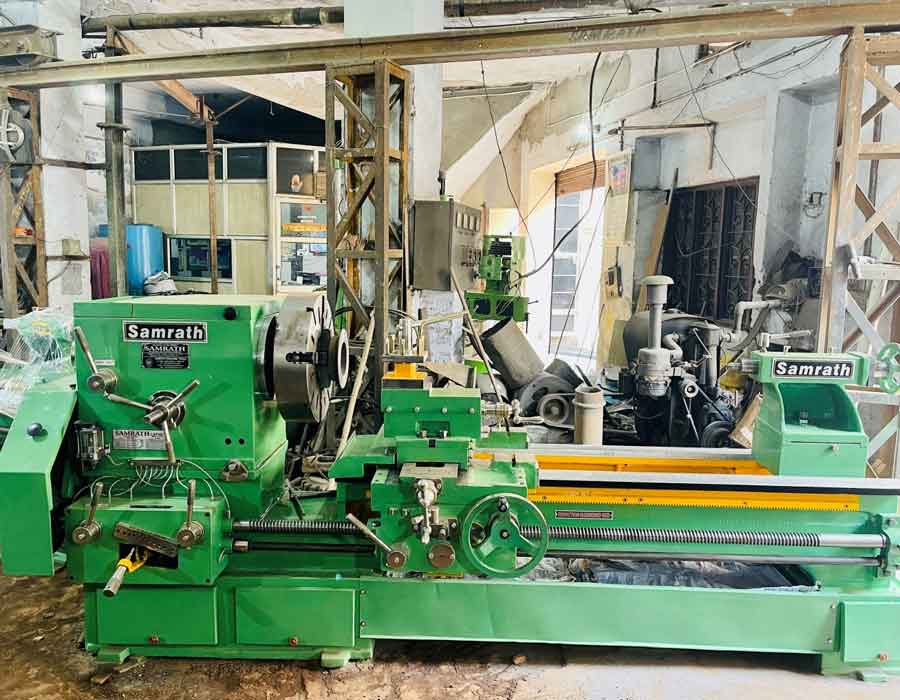

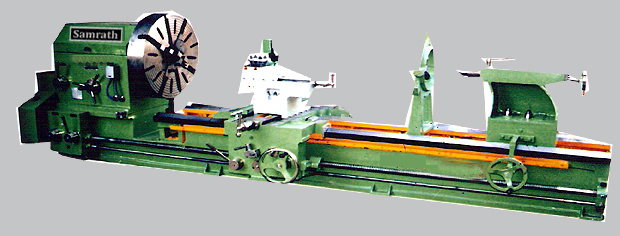

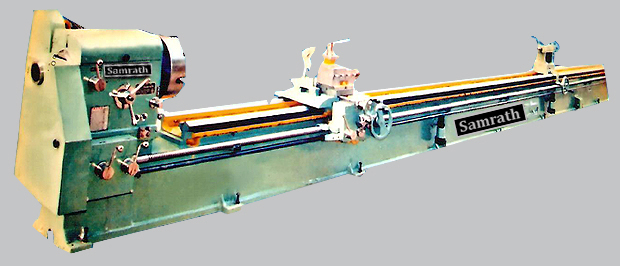

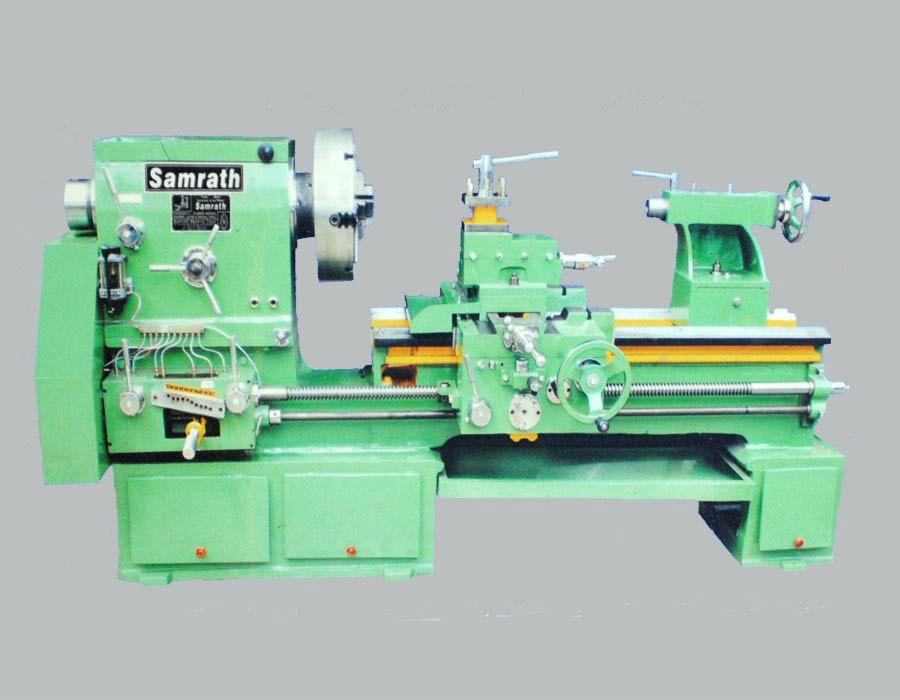

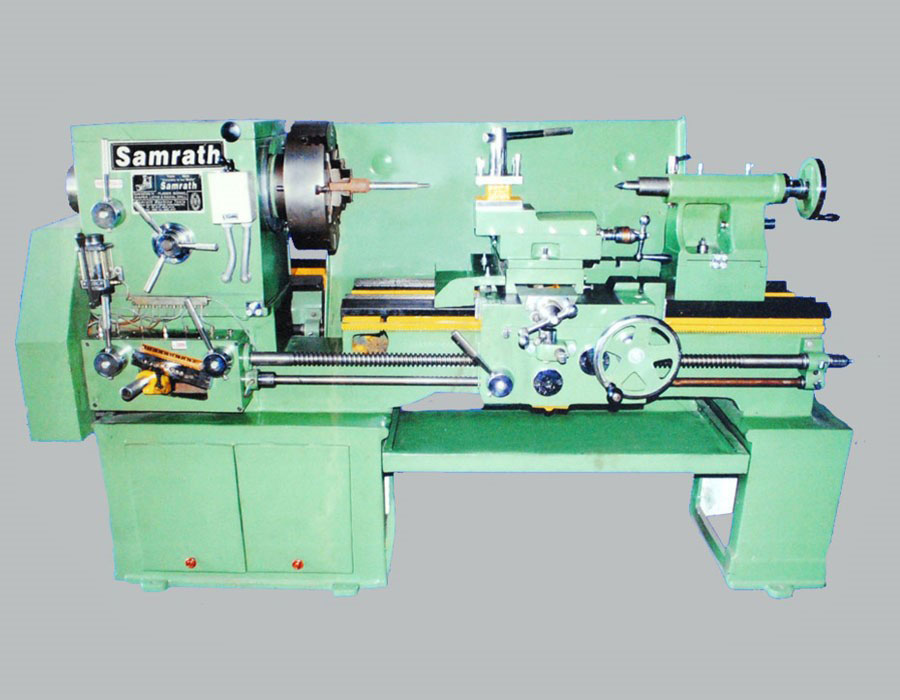

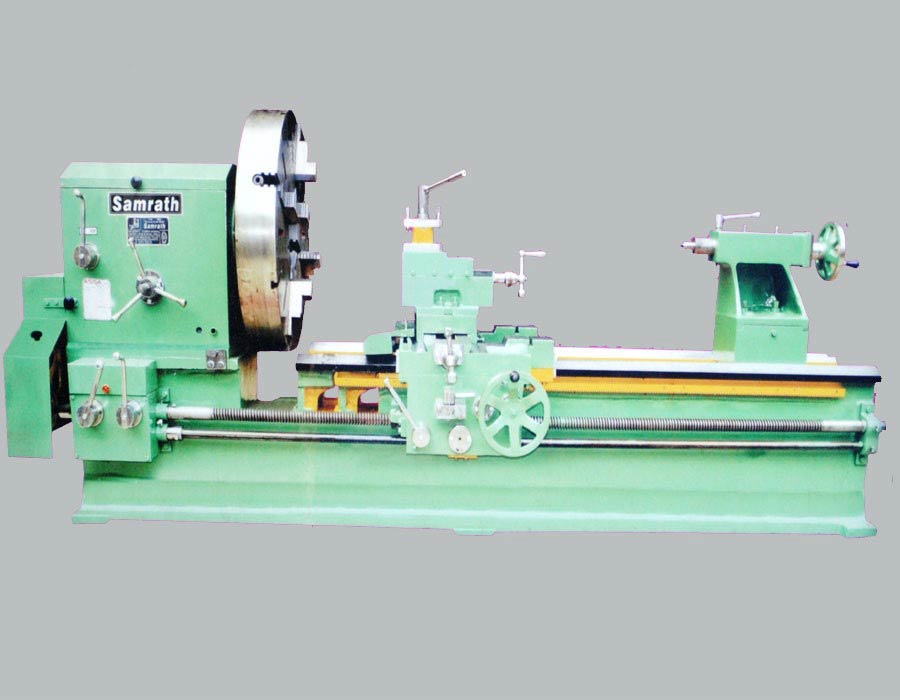

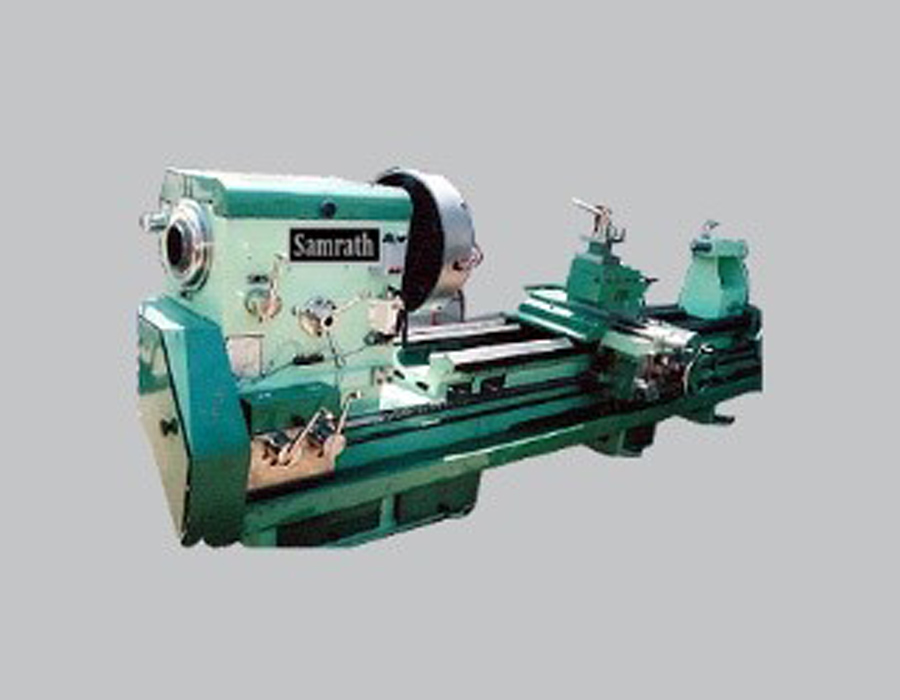

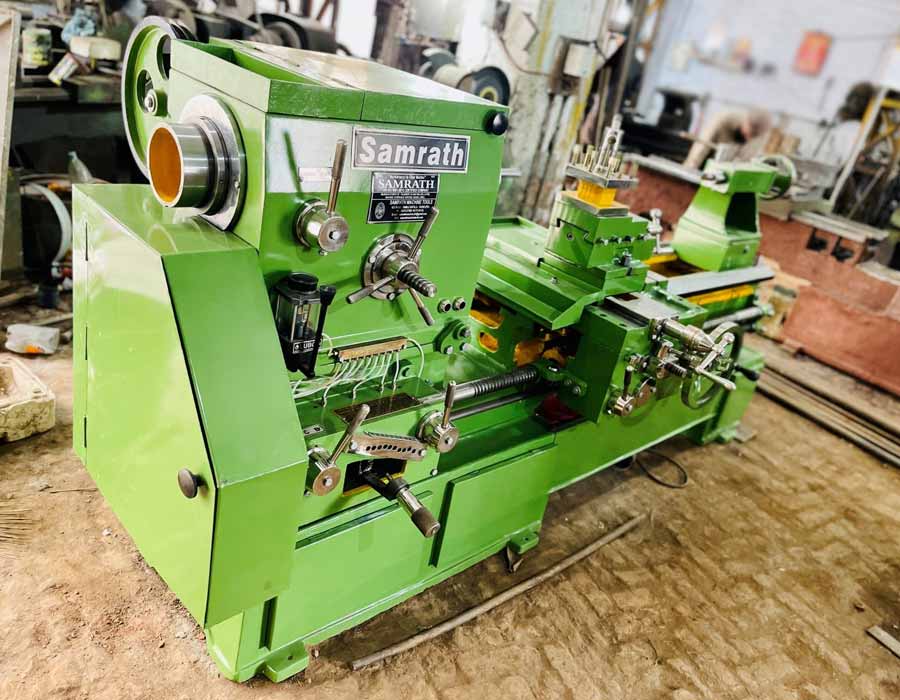

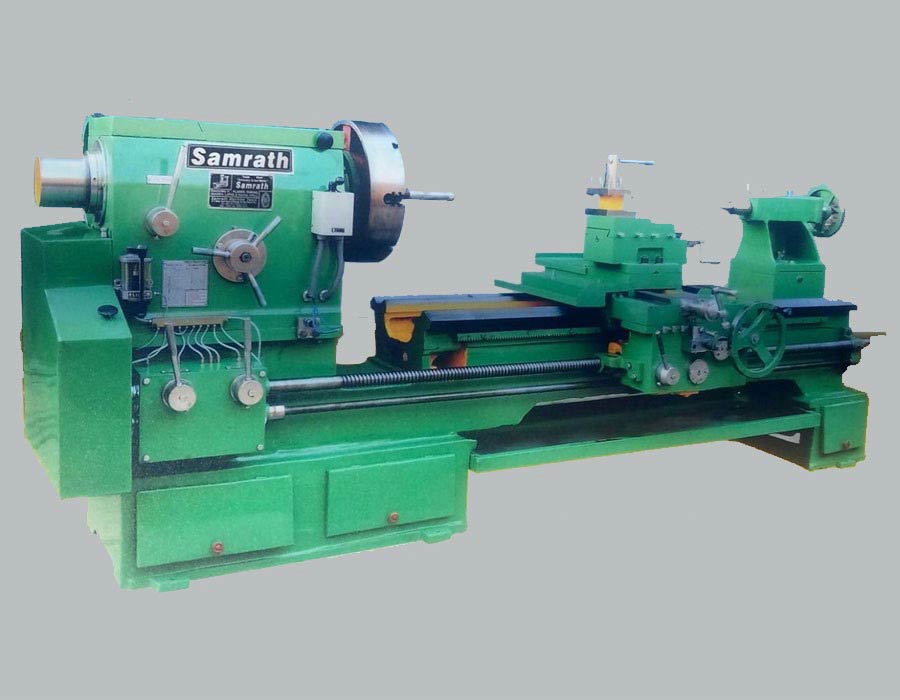

Heavy Duty Roll Turning Lathe

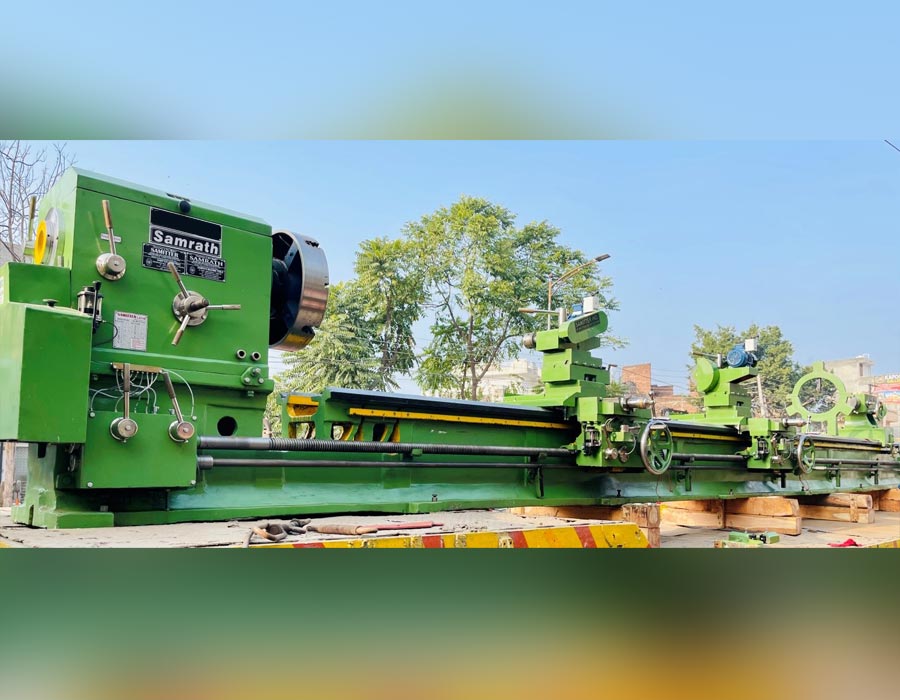

Size : 36'x22"x20” ( Motorized Double Slide with Keyway & Grinding Attachment )

Size : 8'x16"x14"

Size : 8'x16"x14”

Size : 10'x18"x16"

Size : 10'x18"x16" With Keyway Attachment

Size : 6'x14"x12"

Size : 6-1/2'x18"x16"

Size : 12'x20"x18"

Size : 10'x18"x16"

Size : 12'x20"x18"

Size : 30'x30"x28"

Size : 20'x28"x26"

Size : 36'x36"x14"

Size : 16'x20"x18" (Special Screw Cutting Machine)

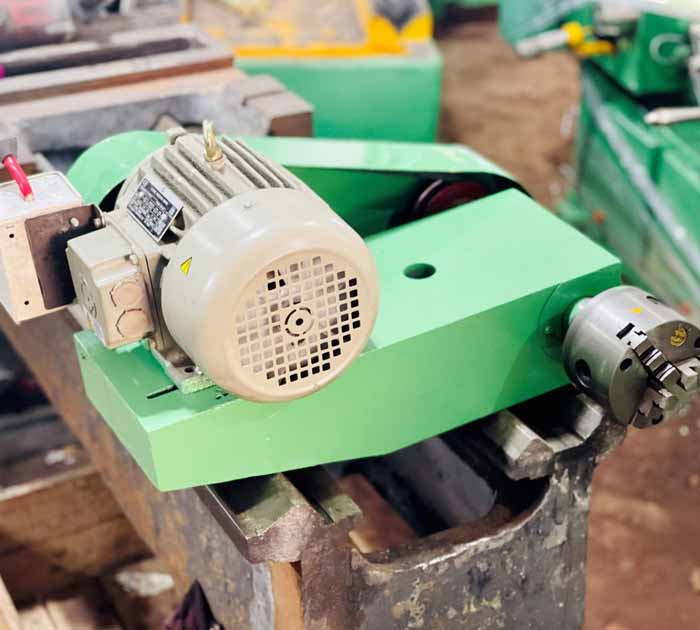

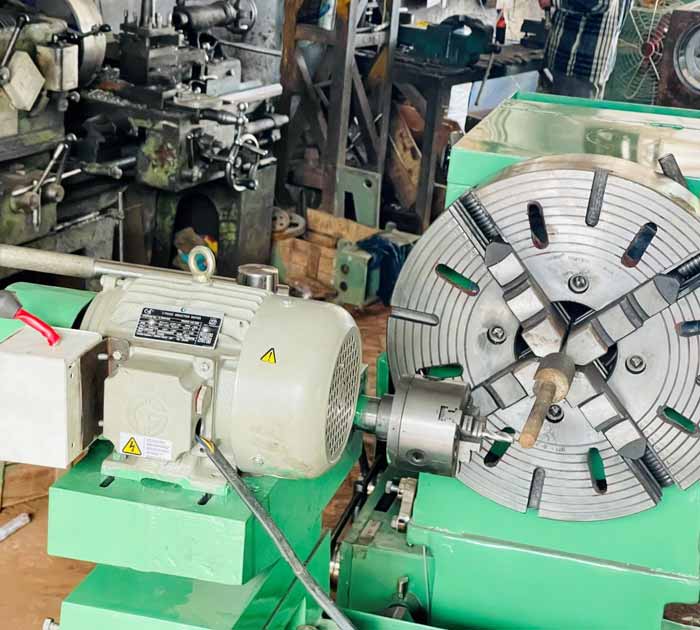

Attachments for Lathe Machine

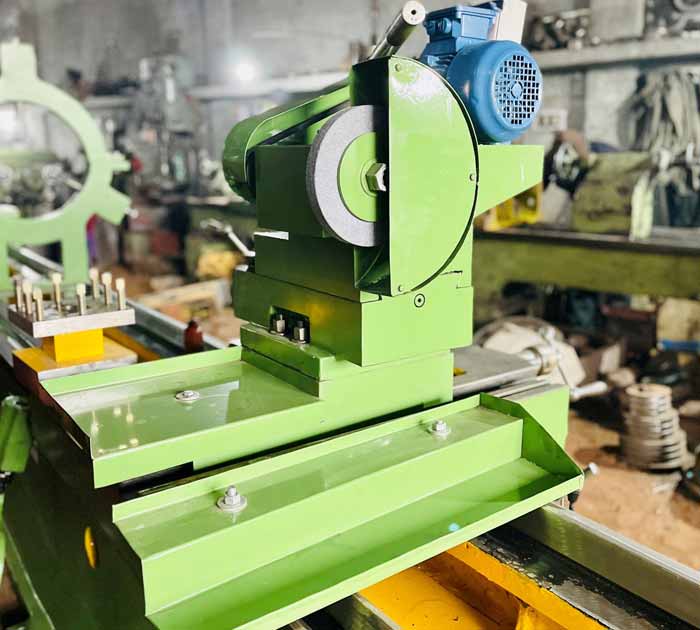

SEW GRINDING

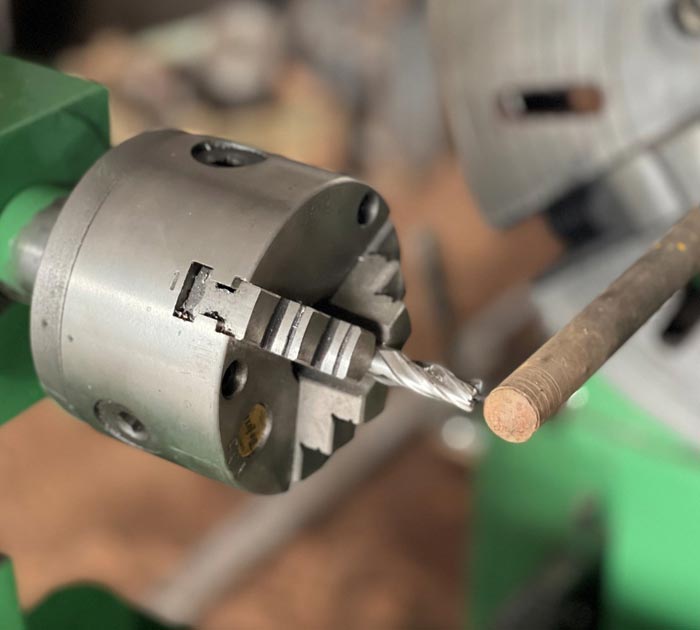

SEW KEYWAY

Videos for Lathe Machine

SPECIFICATIONS
1.	Length of bed	6	8.6	10	12	12	12	14	14	14	14	16	16	16	16	16	20	22	24	26	28	30	32	34	36	40
2.	Width of Bed	14	16	18	18	20	20	20	20	22	22	20	20	22	22	24	26	28	30	32	34	36	38	40	42	44
3.	Total width of gap (inch)	13	16	19	19	26	26	26	26	27	27	26	26	27	27	30	30	32	32	32	32	34	34	34	34	36
4.	NO. of Gap	1	1	1	1	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2
5.	Width of gap in front of face plate (inch	9	13	15	15	22	22	22	22	23	23	22	22	23	25	25	26	26	26	26	28	28	28	28	28	30
6.	Swing in gap dia (Inch)	36	43	48	48	52	52	52	52	60	60	52	52	60	60	64	68	72	76	80	84	86	90	94	98	102
7.	Admit between centres	34	53	72	96	96	90	90	114	114	112	138	138	136	136	154	168	192	216	235	258	282	306	328	354	400
8.	No.ofback Gear set DP	10	10	10	10	8	8	8	8	8	8	8	8	8	8	7	7	7	7	7	7	7	7	7	6	6
9.	Heightofcentre over bed(inch)	12	15	16	16	18	18	18	18	20	20	18	18	20	20	22	24	26	28	30	32	32	34	36	38	40
10.	Maximum swingover carriage	18	20	22	22	25	25	25	25	29	29	25	25	29	29	32	36	40	44	48	52	56	60	64	68	72
11.	Spindle Hollow(Inch)	3.1/8	3.5/8	4	4.1/8	4.1/8	4.1/8	4.1/8	4.1/8	4.1/8	4.1/8	4.1/8	4.1/8	4.1/8	4.1/8	4.1/8	4.1/8	4.1/8	4.1/8	4.1/8	4.1/8	4.1/8	4.1/8	4.1/8	4.1/8	4.1/8
12.	M>T center	3	3	3	3	3	3	3	3	3	4	4	3	3	4	4	4	5	5	5	5	5	5	5	5	5
13.	NO of spindle speeds	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6		6
14.	Noof pedastals	2	2	2	3	3	-	3	-	3	-	4	-	4	------Planer Type ------					-	-	-	-	-	-	-
15.	Type of bed	Sp	Sp	Sp	Sp	Sp	Pt	Sp	Pt	Sp	Pt	Sp	Pt	Sp	Pt	Pt	Pt	Pt	Pt	Pt	Pt	Pt	Pt	Pt	Pt	Pt
16.	NO.ofv-belt &section	2No B	2No B	2No B	2No B	2No c	2No c	2No c	2No c	2No c	2No c	2No c	2No c	2No c	2No c	3NO. c	3NO. c	3NO. c	vv	3NO. c	3NO. c	3NO. c	3NO. c	3NO. c	3NO. c	3NO. c
17.	Tailstockof quill Dia(inch)	2.2/8	2.4/8	2.4/8	2.4/8	2.5/8	2.5/8	2.5/8	2.6/8	2.6/8	2.5/8	2.5/8	2.6/8	2.6/8	2.6/8	3	3	3.1/4	3.1/2	3.1/2	3.1/2	3.1/2	3.1/2	4	4	4
18.	Tailstocksquil travel(Inch)	9	10	12	12	14	14	14	14	15	15	14	14	15	15	16	16	16	16	16	16	16	17	17	17	17
19.	Leadscrew Dia (MM)	40	45	50	50	50	55	55	55	55	55	55	55	55	60	63	63	63	63	63	63	63	65	65	65	65
20.	FeedShft Dia(mm)	25	28	28	32	32	32	36	36	36	36	36	36	36	36	36	40	40	40	40	40	40	40	40	404	40
21.	Headstock Gear(Helical D.P)	6	6	6	6	5	5	5	5	5	5	5	5	5	5	5	4	4	4	4	4	4	4	4	4	4
22.	H.P Recommended	1	2	2	2	2	2	2	2	3	3	2	3	3	3	5	5	5	5	5	5	7.5	7.5	7.5	7.5	7.5
23.	ApproxGross weight	12	17	22	28	32	38	37	42	41	46	41	45	45	48	58	72	85	97	110	115	130	150	170	210
