Samrath Engineering Works

Model No SEW SH 24”


Model No SEW SH 24”

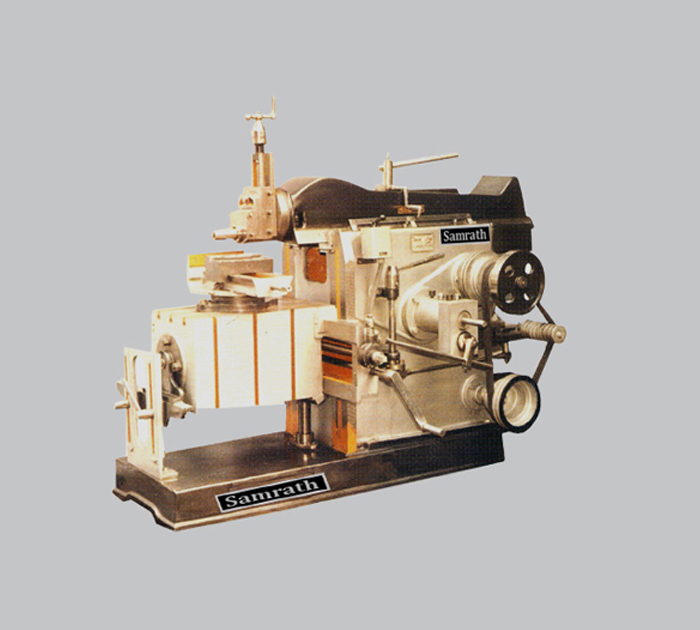

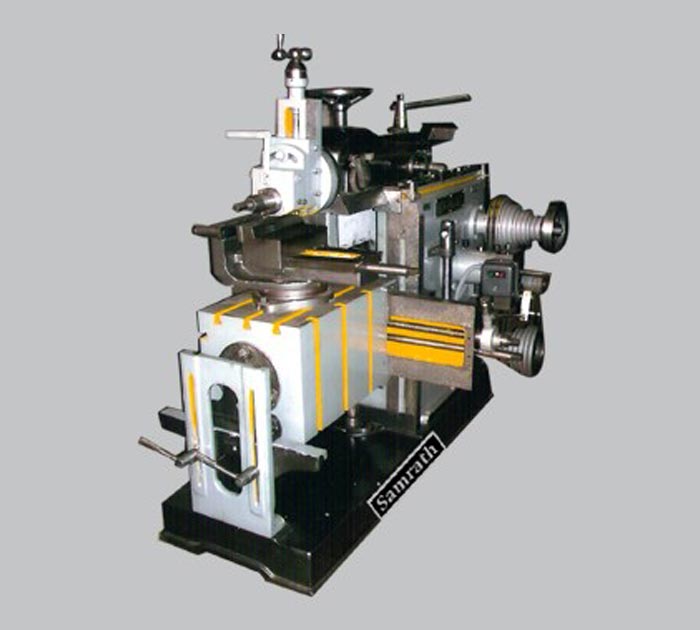

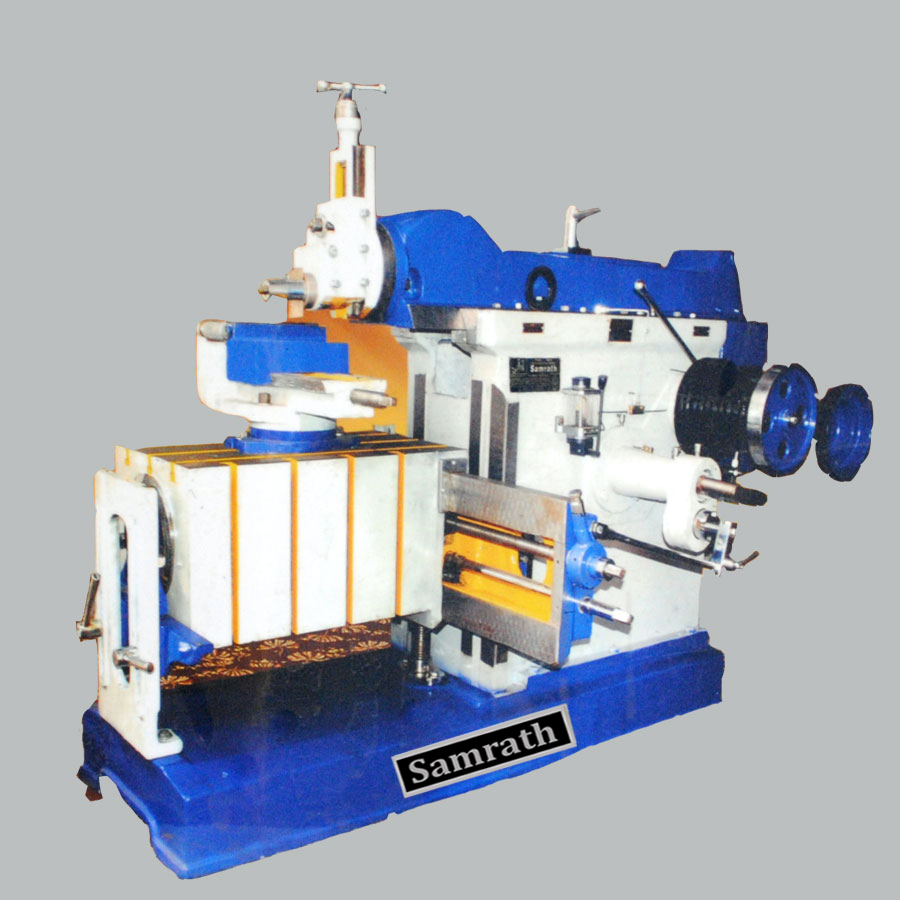

Cone Pulley Drive Shaper Machine

MODEL	NA 450		NA 600		NA 750		NA 900
	Inches	MM	Inches	MM	Inches	MM	Inches	MM
Max. Length of Stroke	19	482	26	660	32	812	37	939
Min. Length of Stroke	0	0	0	0	0	0	0	0
Length of Ram with ToolSlides	40	1016	51	1295	58	1473	65	1651
Length & width of Ram Bearing	13x9	330x228	18x111/2	457x292	25x111/2	635x292	31x12	787x305
Length & width of Table Surface	18x12	457x305	241/2x151/2	622x393	301/2x16	774x406	35x161/2	889x419
Horizontal Table of Travel	18	457	24	609	27	685	33	838
Vertical Hand of Travel	10	254	151/2	393	171/2	444	20	508
Length of Body of Ram	28	711	31	787	35	889	42	1066
Length & Width of Slide	29x11	736x279	391/2x12	1003x305	42x13	1066x330	47x14	1193x355
Juck	Double		Double		Double		Double
Tool Head Down Feed	6	152	9	228	9	228	101/2	266
Tool Holder Admits Tool	11/2x3/4	38x19	13/4x1	44x25	2x1	51x25	2x1	57x28
Length, Width & Depth of Vice	10x8 x2	254x203 x51	12x91/2x1 x3	305x241x76	12x91/2 x3	305x 241x76	15x12 x4	381x305 x101
No. of Speed	4		4		4		4
Range of Speed	16,28, 40,65		8,16, 30,48		8,16, 30,48		8,16, 30,48
Size of Base Plate	52x20 x5	1320x 508x127	63x22 x6	1600x 558x152	72x22 x6	1828x 558x152	80x22 x8	2032x 558x152
HP Required	2/1440 2/960		2/1440 2/960		2/1440 2/960		2/1440 2/960
Approximate Weight in Qtls.	13		17		191/2		25
